Kumpulan Gambar PinOut ISP Samsung 146 Model/Type Ada Disini!

Pada kesempatan kali ini, ditFlasher membagikan beberapa gambar ISP PinOut Samsung untuk keperluan Flashing bagi para Teknisi Ponsel, mungkin gambar ini penting bagi sebagian orang jadi saya akan membagikan nya kepada kalian.

ISP PinOut ini saya dapat dari Tool UFI Box jadi buat Anda yang sudah memiliki Box UFI mungkin Anda sudah punya PinOut ISP Samsung yang saya bagikan disini.

ISP PinOut ini bisa gigunakan untuk berbagai macam kegiatan, contohya untuk Direct eMMC, Repartisi IC eMMC, Repair eMMC, MemProgram Ulang eMMC,  keperluan Bypass MiCloud, FRP (Factory Reset Protection), dan bisa untuk Buka pola/pin atau kunci layar HandPhone Samsung.

ISP PinOut Samsung C3303

ISP PinOut Samsung GT-7562

ISP PinOut Samsung GT-B330

ISP PinOut Samsung GT-I900

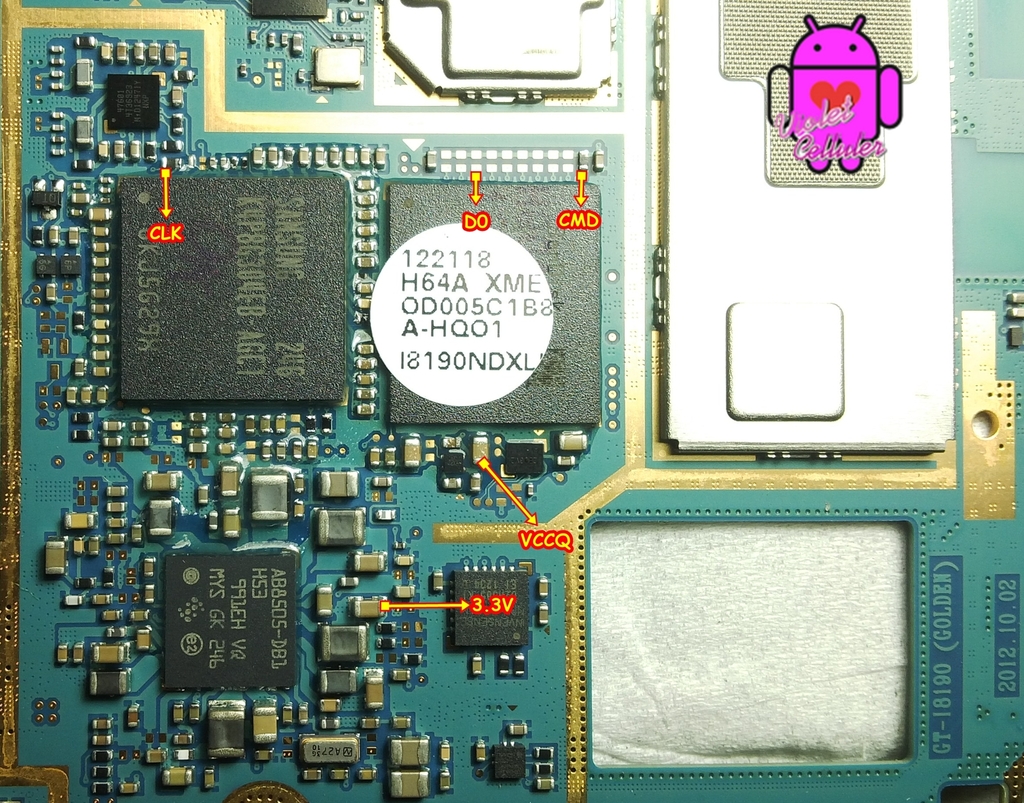

ISP PinOut Samsung GT-I8190

ISP PinOut Samsung GT-I8200N

ISP PinOut Samsung GT-I8252

ISP PinOut Samsung GT-I8262

ISP PinOut Samsung GT-I8268

ISP PinOut Samsung GT-I8550

ISP PinOut Samsung GT-I8552

ISP PinOut Samsung GT-I8580

ISP PinOut Samsung GT-I8730

ISP PinOut Samsung GT-I9000

ISP PinOut Samsung GT-I9003

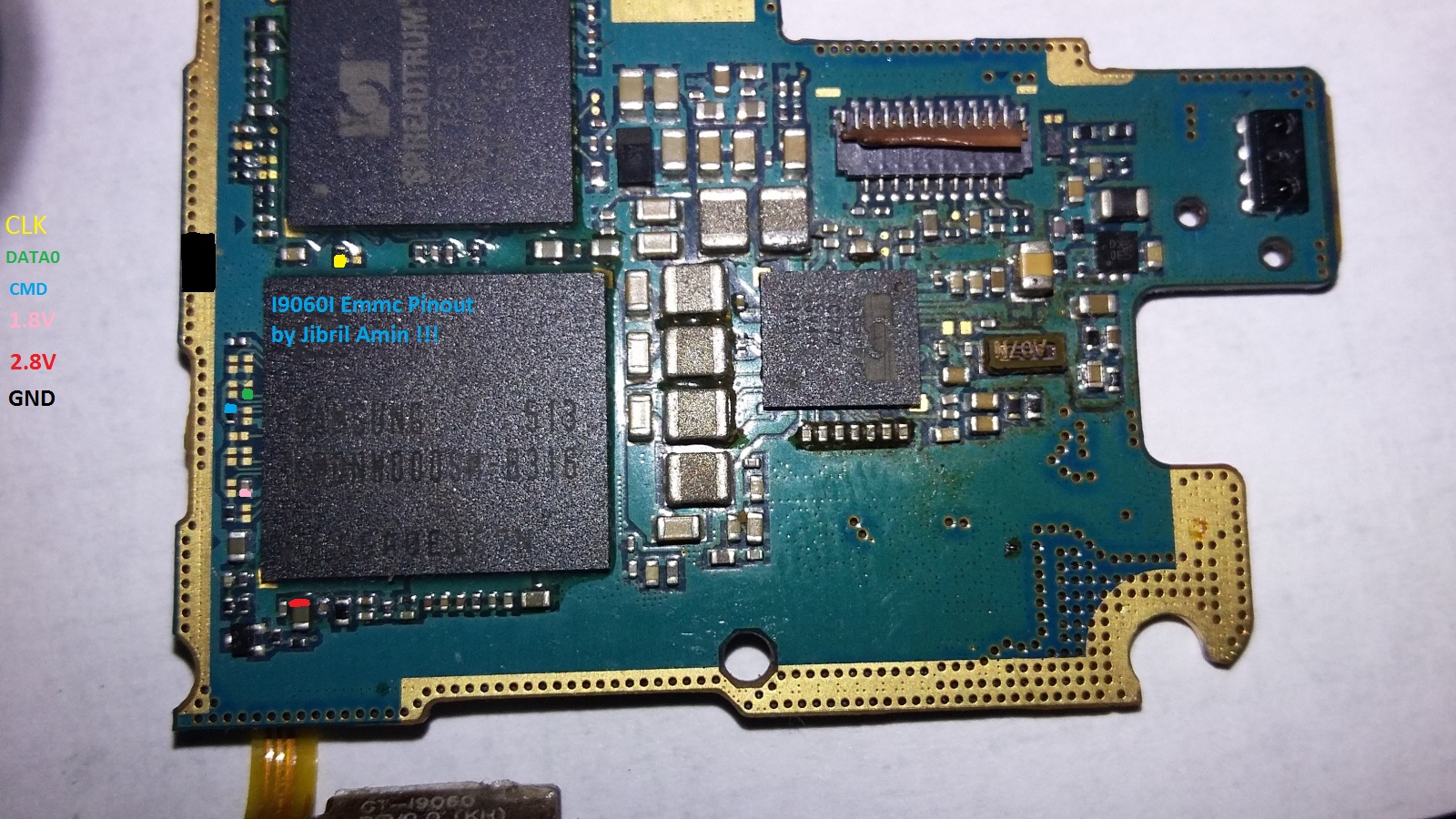

ISP PinOut Samsung GT-i9060i

ISP PinOut Samsung GT-I9100

ISP PinOut Samsung GT-I9100G

ISP PinOut Samsung GT-I9103

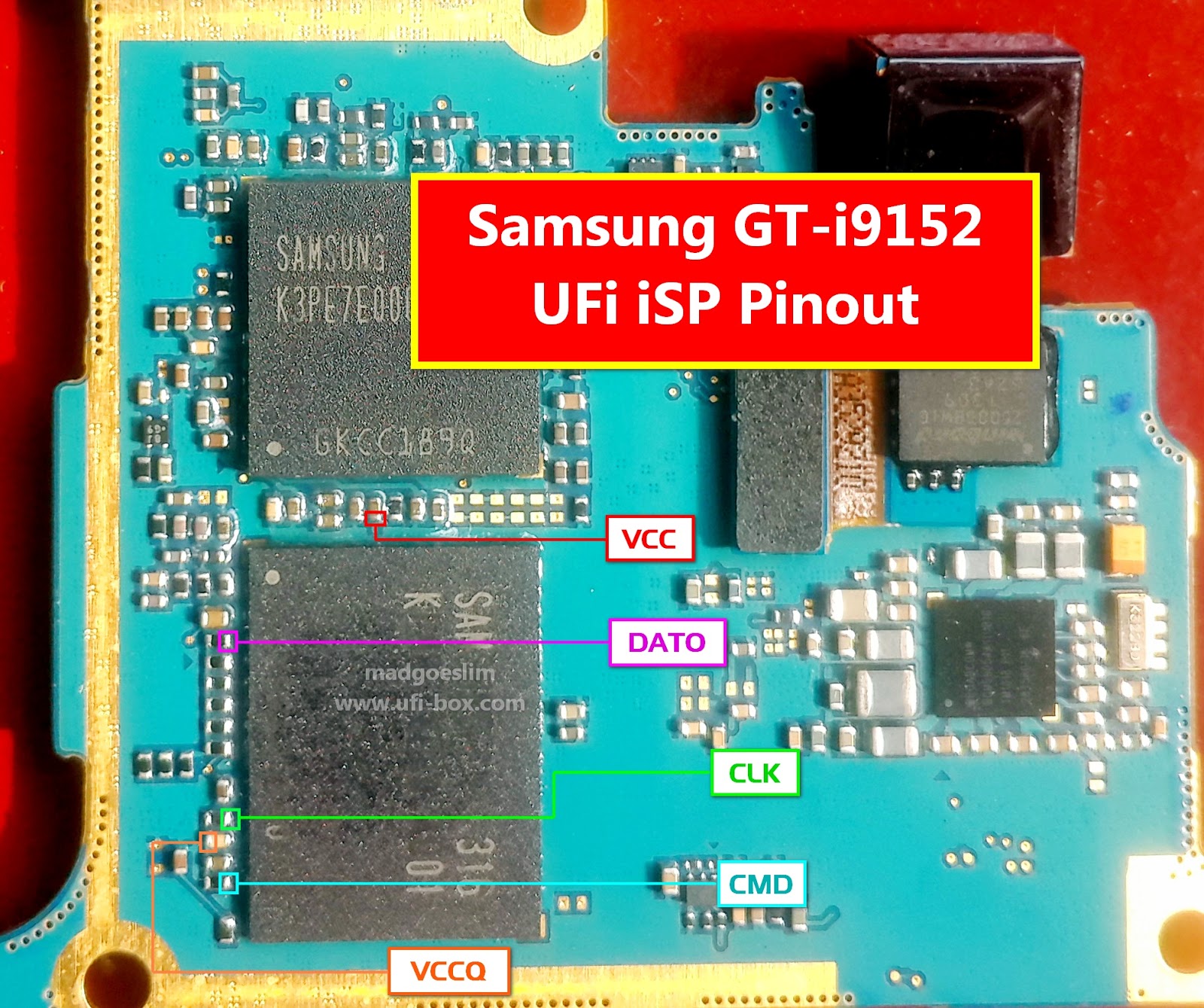

ISP PinOut Samsung GT-I9152

ISP PinOut Samsung GT-i9190 i9192 i9195 SGH-1257M SHV-E379K

ISP PinOut Samsung GT-I9192

ISP PinOut Samsung GT-I9300

ISP PinOut Samsung GT-I9500

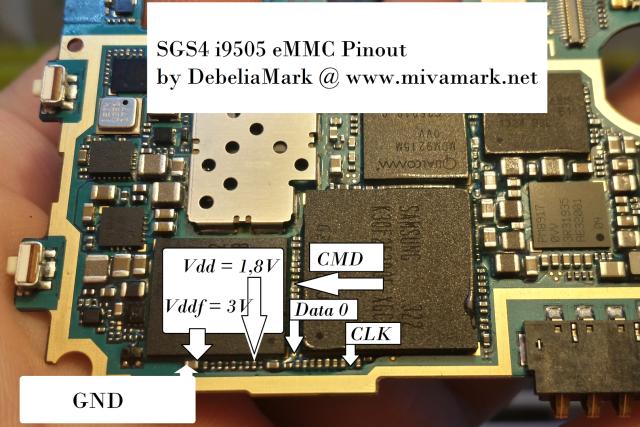

ISP PinOut Samsung GT-I9505

ISP PinOut Samsung GT-I9508

ISP PinOut Samsung GT-N5120

ISP PinOut Samsung GT-N7000

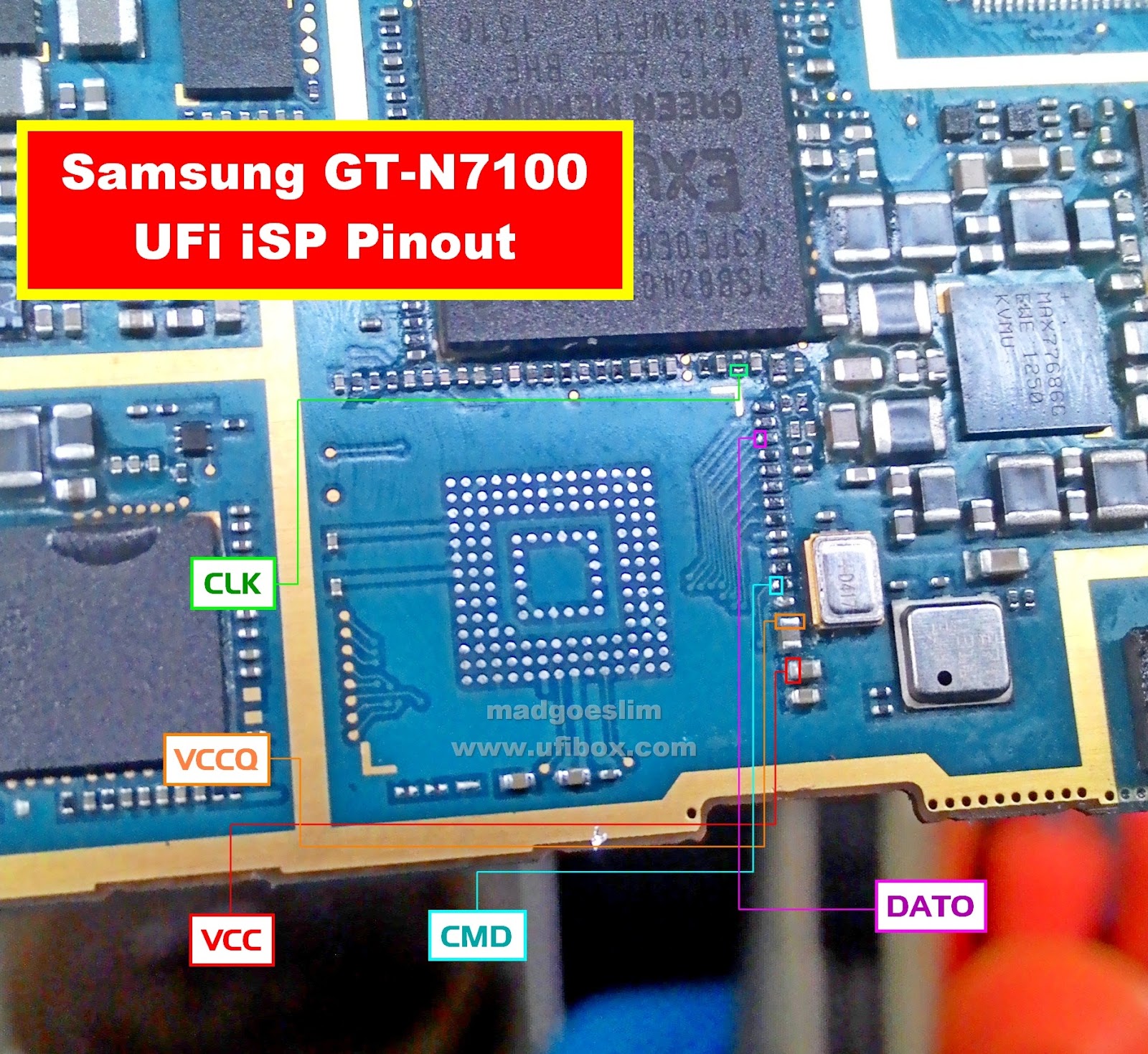

ISP PinOut Samsung GT-N7100

ISP PinOut Samsung GT-N7105

ISP PinOut Samsung GT-N8000

ISP PinOut Samsung GT-P1000

ISP PinOut Samsung GT-P3100

ISP PinOut Samsung GT-P5100

ISP PinOut Samsung GT-P5200

ISP PinOut Samsung GT-P5210

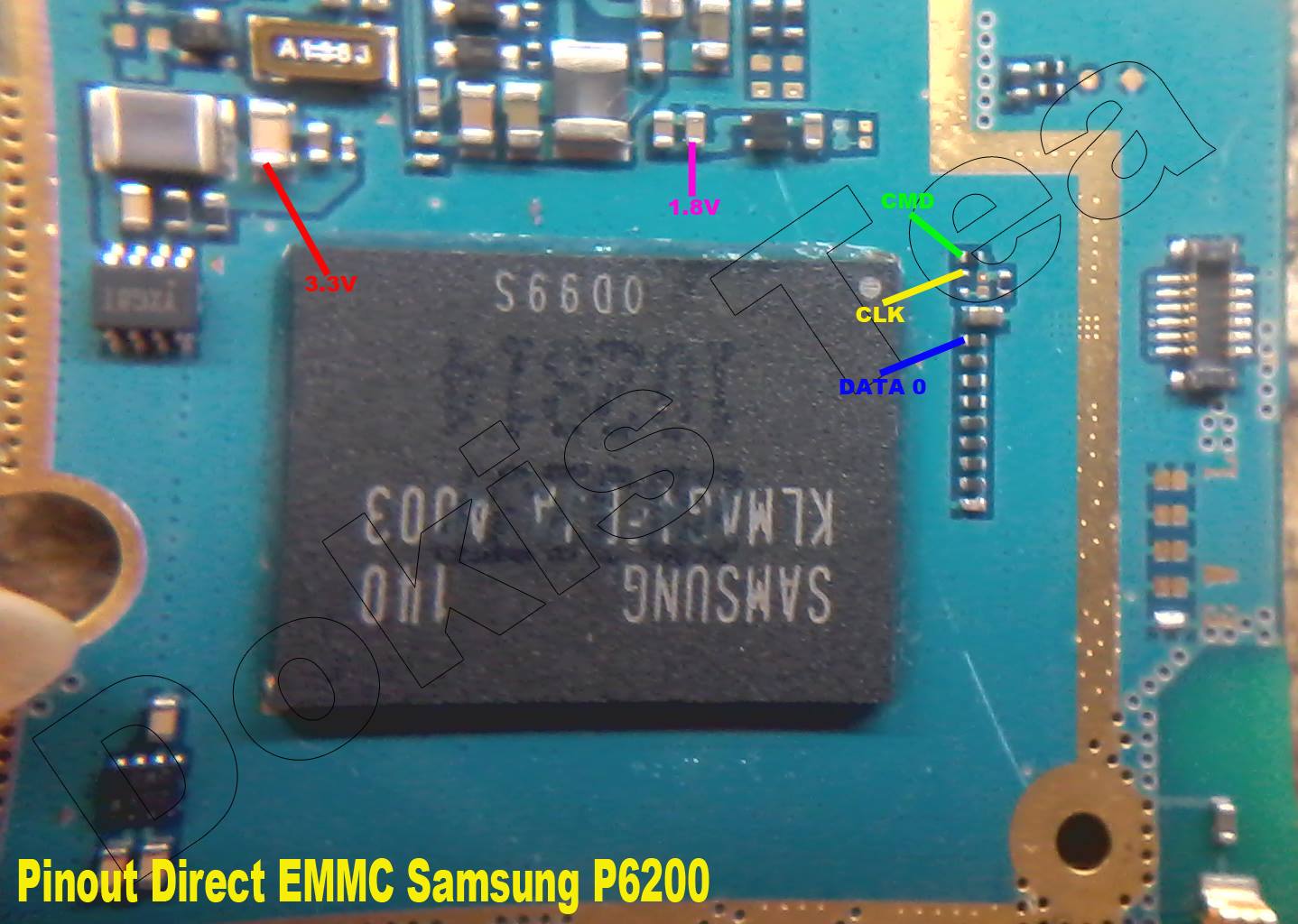

ISP PinOut Samsung GT-P6200

ISP PinOut Samsung GT-P7500

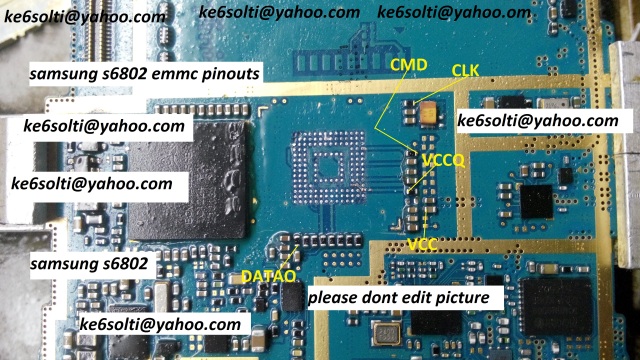

ISP PinOut Samsung GT-S6802

ISP PinOut Samsung GT-S6810

ISP PinOut Samsung GT-S7262

ISP PinOut Samsung GT-S7275R

ISP PinOut Samsung GT-S7500

ISP PinOut Samsung GT-S7710

ISP PinOut Samsung SC-03E

ISP PinOut Samsung SC-04F

ISP PinOut Samsung SCH-I759

ISP PinOut Samsung SCH-T898

ISP PinOut Samsung SGH-I897

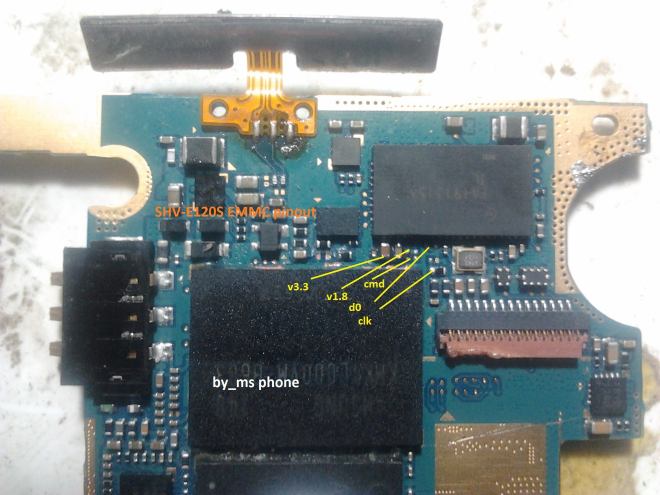

ISP PinOut Samsung SHV-E120S

ISP PinOut Samsung SHV-E160L

ISP PinOut Samsung SHV-E160S

ISP PinOut Samsung SHV-E210S

ISP PinOut Samsung SHV-E250K

ISP PinOut Samsung SHV-E250L

ISP PinOut Samsung SHV-E300S

ISP PinOut Samsung SHV-E330

ISP PinOut Samsung SHV-E470S

ISP PinOut Samsung SHW-M100S

ISP PinOut Samsung SHW-M110S

ISP PinOut Samsung SHW-M250S

ISP PinOut Samsung SM-G360P

ISP PinOut Samsung SM-351H

ISP PinOut Samsung SM-A105G

ISP PinOut Samsung SM-A205F

ISP PinOut Samsung SM-A310F

ISP PinOut Samsung SM-A320F

ISP PinOut Samsung SM-A500F

ISP PinOut Samsung SM-A510FD

ISP PinOut Samsung SM-A520F

ISP PinOut Samsung SM-A605FN

ISP PinOut Samsung SM-A700H

ISP PinOut Samsung SM-A720F

ISP PinOut Samsung SM-C115

ISP PinOut Samsung SM-C710F

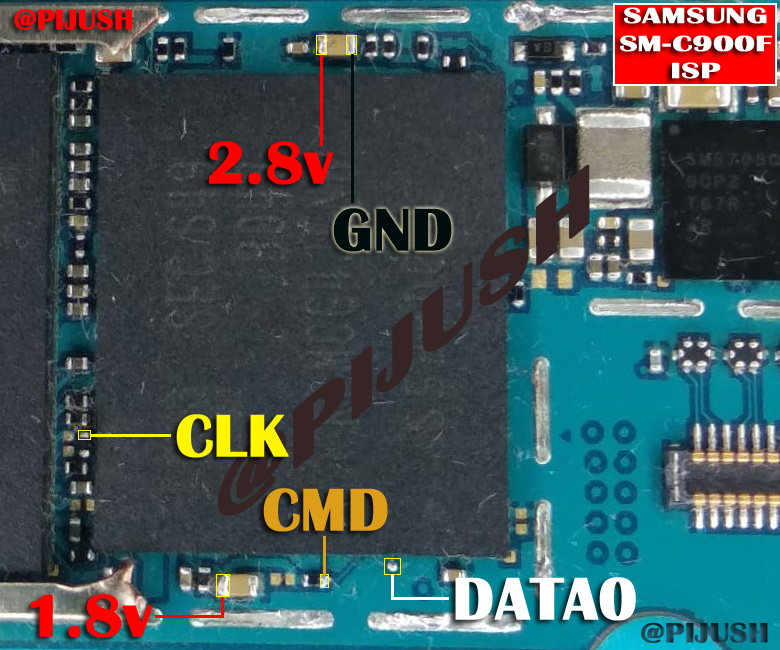

ISP PinOut Samsung SM-C900F

ISP PinOut Samsung SM-C900F

ISP PinOut Samsung SM-C7000

ISP PinOut Samsung SM-G130H

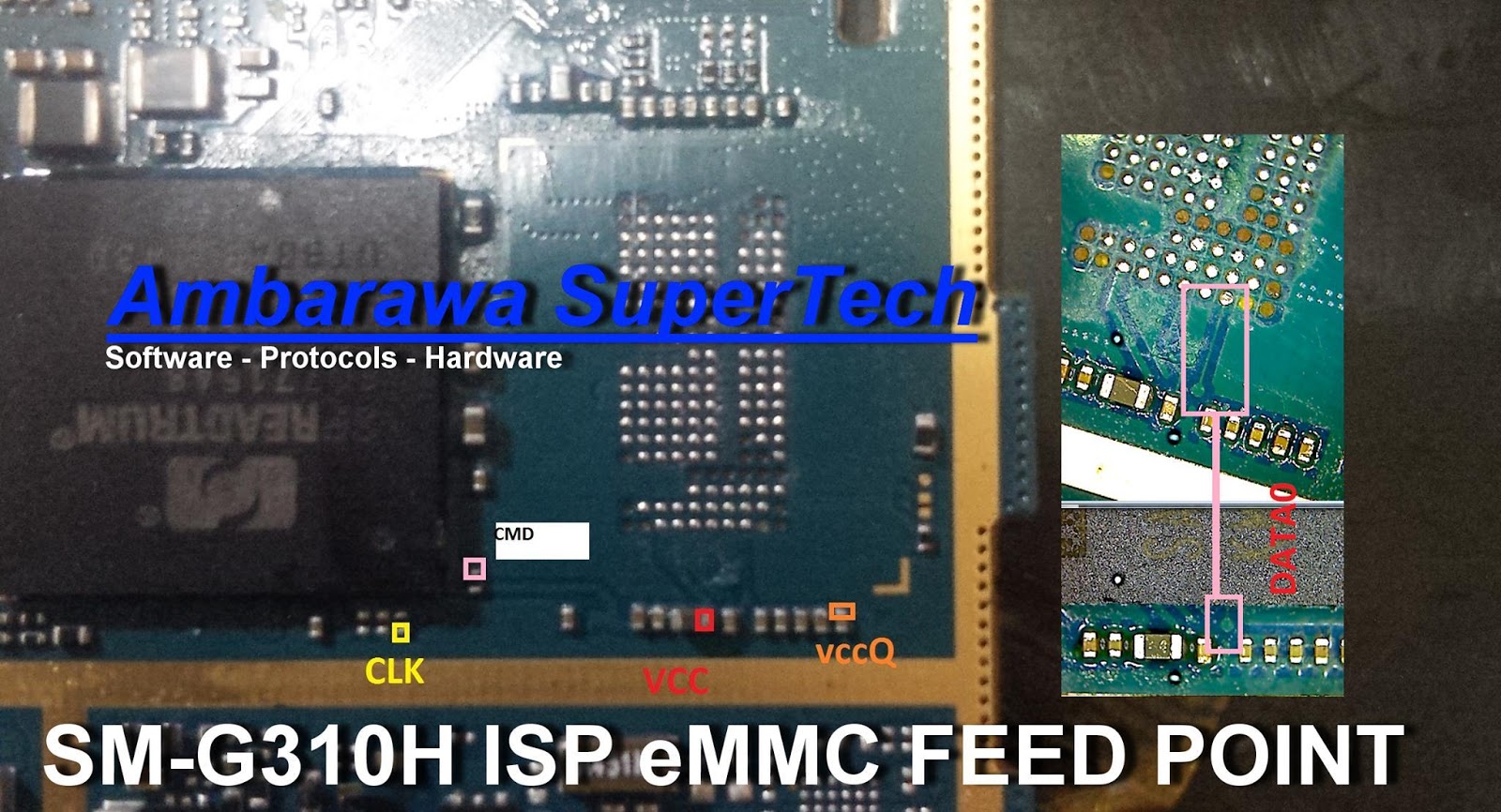

ISP PinOut Samsung SM-G310H

ISP PinOut Samsung SM-G313HZ

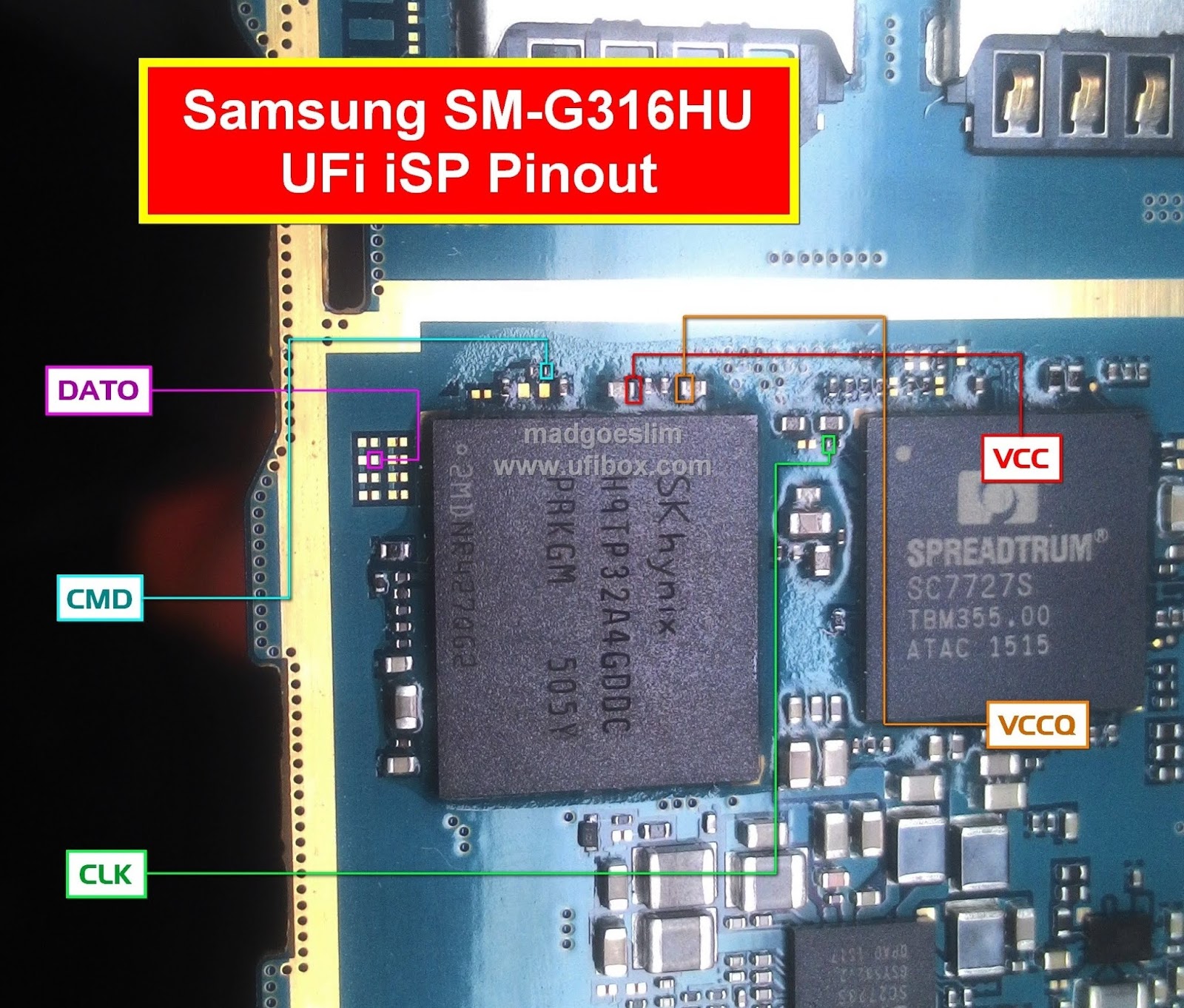

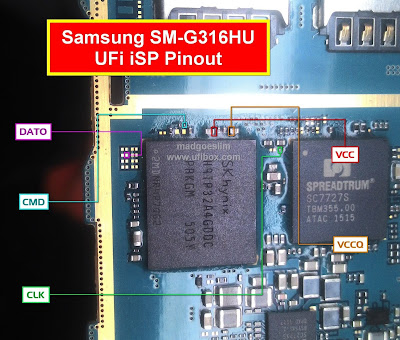

ISP PinOut Samsung SM-G316HU

ISP PinOut Samsung SM-G318HZ

ISP PinOut Samsung SM-G355H

ISP PinOut Samsung SM-G355H V2

ISP PinOut Samsung SM-G360P

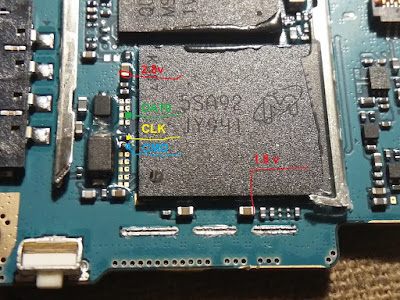

ISP PinOut Samsung SM-G360T1

ISP PinOut Samsung SM-G380P

ISP PinOut Samsung SM-G530FZ

ISP PinOut Samsung SM-G530H REV 0.4B

ISP PinOut Samsung SM-G530H

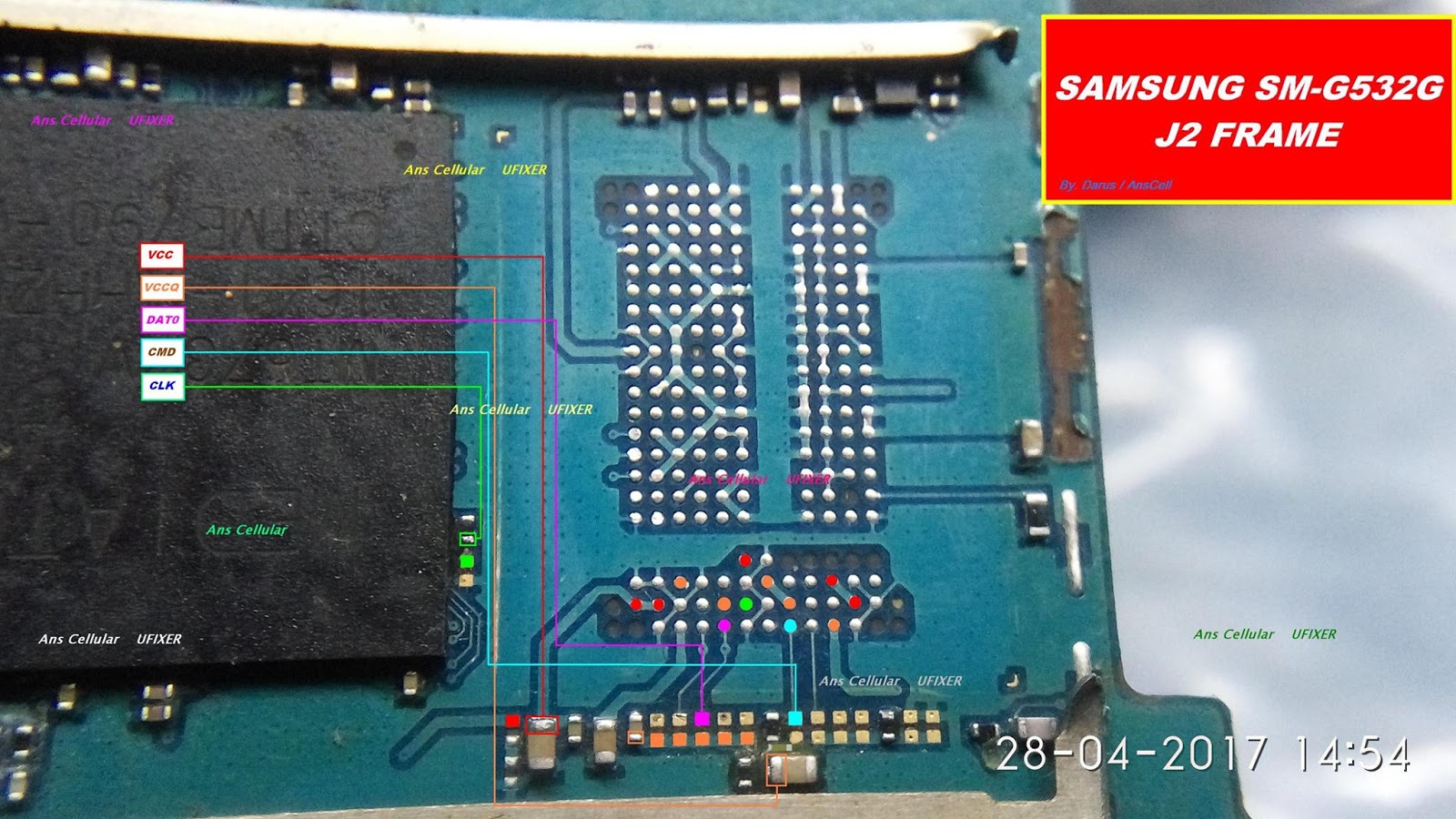

ISP PinOut Samsung SM-G532G

ISP PinOut Samsung SM-G570F

ISP PinOut Samsung SM-G570Y

ISP PinOut Samsung SM-G610F

ISP PinOut Samsung SM-G613H

ISP PinOut Samsung SM-G720N0

ISP PinOut Samsung SM-G900

ISP PinOut Samsung SM-G900F

ISP PinOut Samsung SM-G900H

ISP PinOut Samsung SM-G900I

ISP PinOut Samsung SM-G5308W

ISP PinOut Samsung SM-G7102

ISP PinOut Samsung SM-J100G

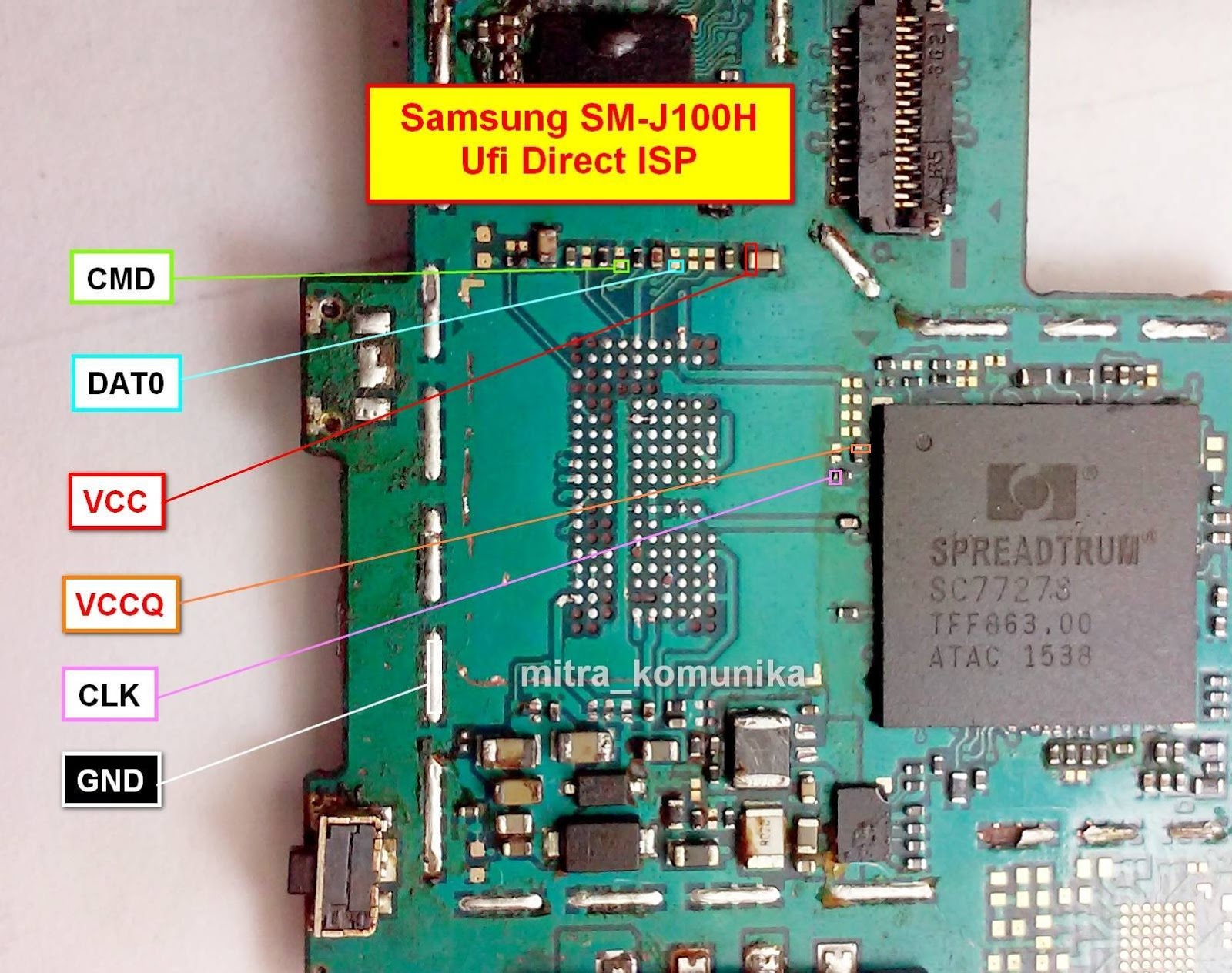

ISP PinOut Samsung SM-J100H

ISP PinOut Samsung SM-J106B

ISP PinOut Samsung SM-J106F

ISP PinOut Samsung SM-J110G

ISP PinOut Samsung SM-J110H

ISP PinOut Samsung SM-J111F

ISP PinOut Samsung SM-J120G

ISP PinOut Samsung SM-J200G

ISP PinOut Samsung SM-J210F

ISP PinOut Samsung SM-J250F

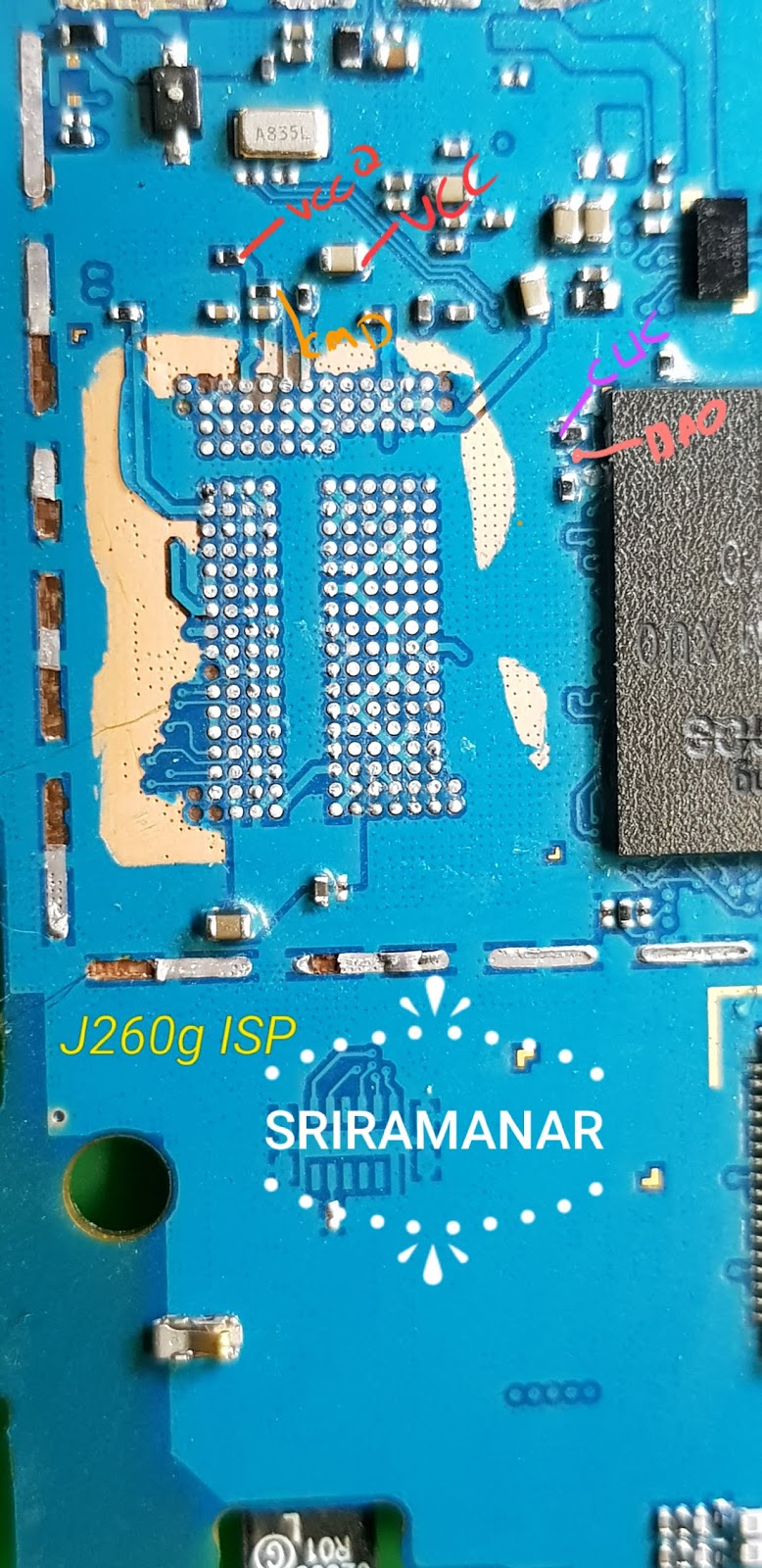

ISP PinOut Samsung SM-J260G

ISP PinOut Samsung SM-J320A

ISP PinOut Samsung SM-J320G

ISP PinOut Samsung SM-J320H

ISP PinOut Samsung SM-J330F/DS

ISP PinOut Samsung SM-J415

ISP PinOut Samsung SM-J500FN

ISP PinOut Samsung SM-J510G

ISP PinOut Samsung SM-J700H

ISP PinOut Samsung SM-J701F

ISP PinOut Samsung SM-J710F

ISP PinOut Samsung SM-J710FN

ISP PinOut Samsung SM-J720F-M

ISP PinOut Samsung SM-J730FM

ISP PinOut Samsung SM-J810F

ISP PinOut Samsung SM-N750

ISP PinOut Samsung SM-N750S

ISP PinOut Samsung SM-N900

ISP PinOut Samsung SM-N900K

ISP PinOut Samsung SM-N7502

ISP PinOut Samsung SM-N7507

ISP PinOut Samsung SM-N9005

ISP PinOut Samsung SM-T110

ISP PinOut Samsung SM-T111

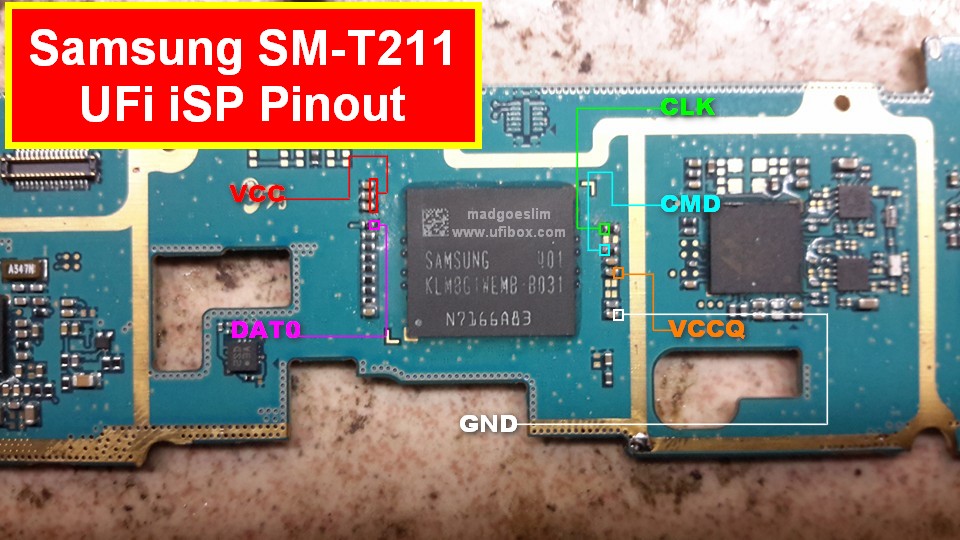

ISP PinOut Samsung SM-T211

ISP PinOut Samsung SM-T215

ISP PinOut Samsung SM-T231

ISP PinOut Samsung SM-T311

ISP PinOut Samsung SM-T325

ISP PinOut Samsung SM-T550

ISP PinOut Samsung SM-T705

ISP PinOut Samsung SM-T805

Mungkin sekian untuk "Kumpulan Gambar PinOut ISP Samsung 146 Model/Type Ada Disini!" semoga blog ditFlasher ini dapat memberikan manfaat bagi para pembacanya, jika saya dapat lagi gambar Pinout ISP samsung yang baru, akan saya update lagi artikel nya.
